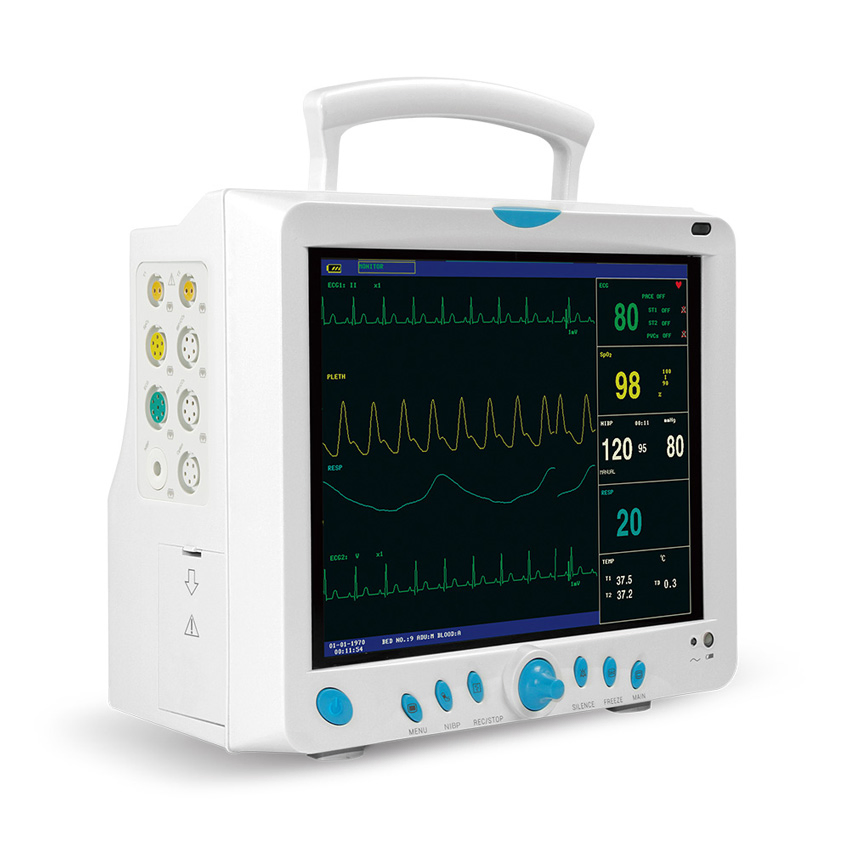

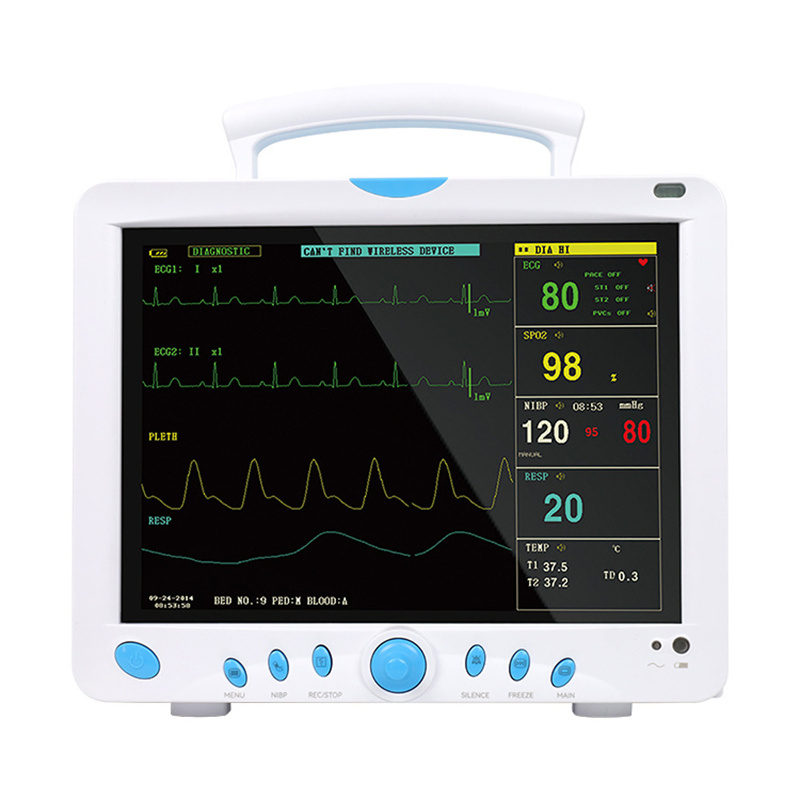

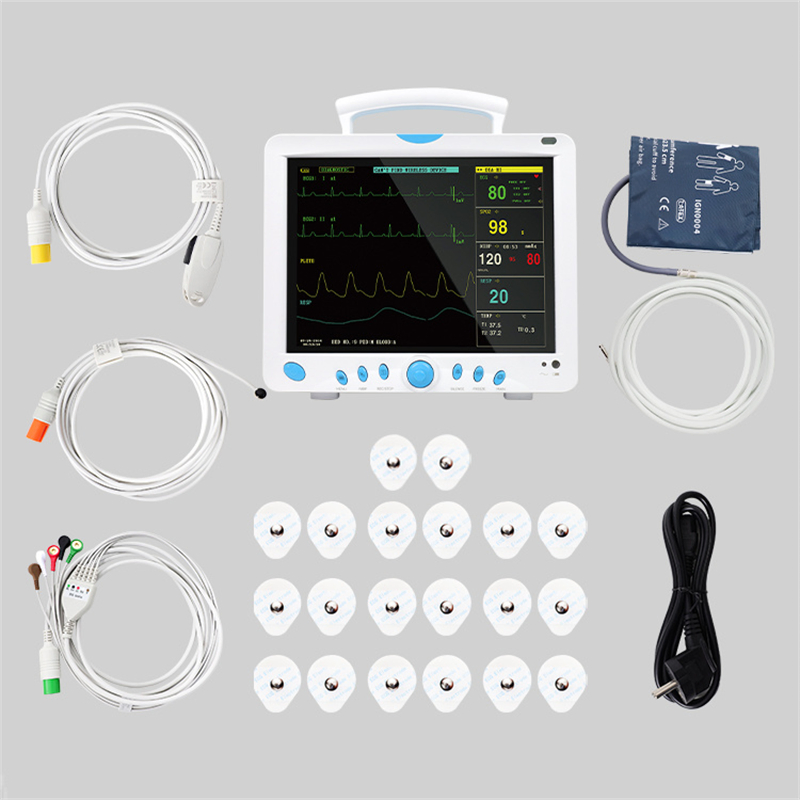

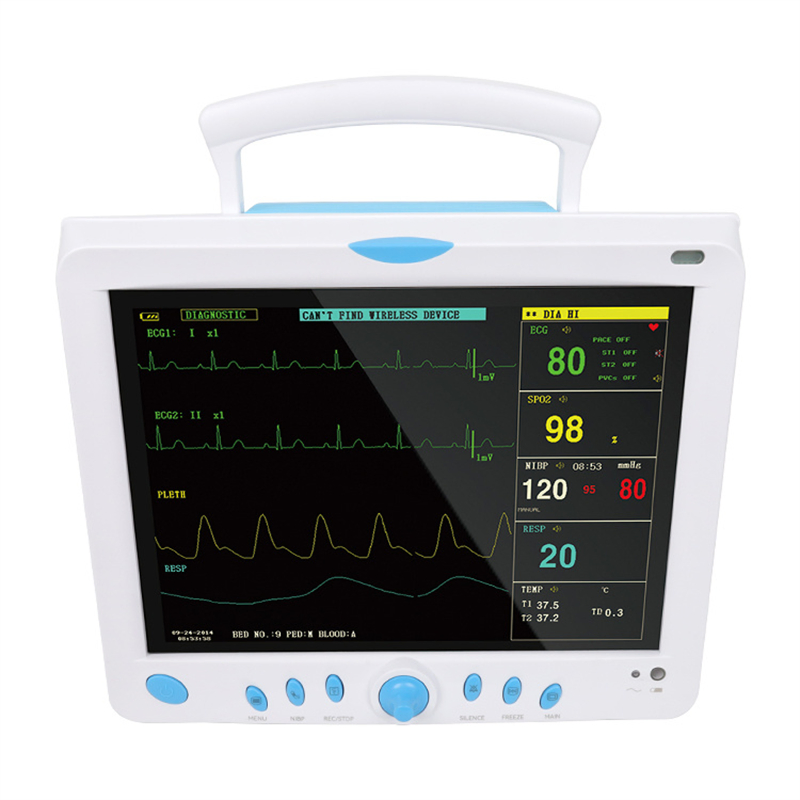

This device can monitor such parameters as ECG, RESP, SpO2, PR, NIBP and dual-channel TEMP, etc. It integrates parameter measurement module, display and recorder in one device to form a compact and portable equipment. At the same time, its built-in replaceable battery provides convenience for patient moving.

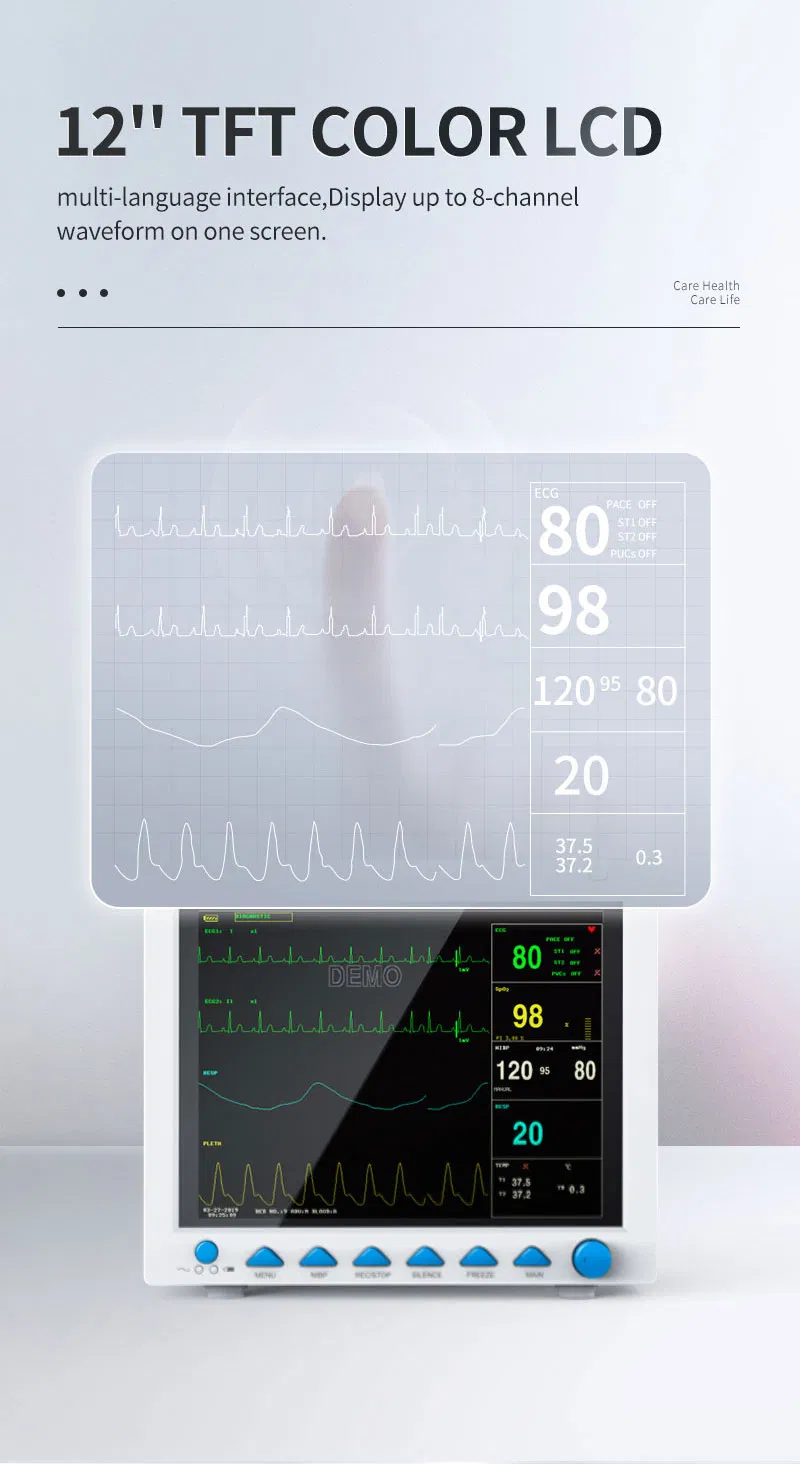

• 12.1'' TFT color LCD with multi-language interface support (English, French, German, Spanish, Italian, etc.).
• Fanless design for quiet, energy-saving, and clean operation, reducing cross-infection risks.
• All-round monitor suitable for adult, pediatric, and neonate patients.

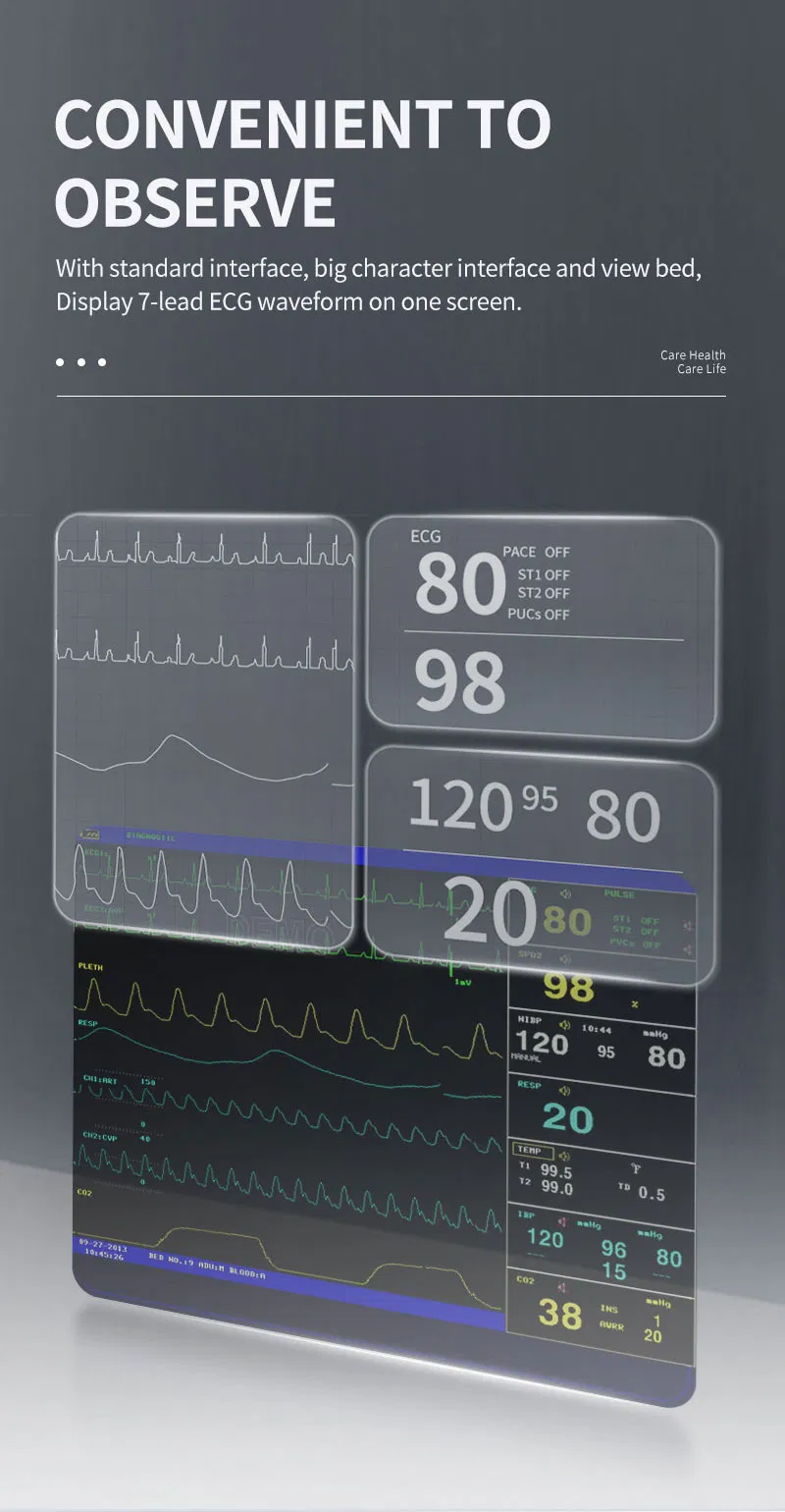

• Standard interface including OxyCRG, trend chart, and big character view.
• Display up to 8-channel waveforms and 7-lead ECG on one screen.
• Digital SpO2 technology with anti-ambient light interference.
• NIBP measurement modes: Manual/AUTO/Continuous with 4800-group data storage.
• Drug concentration calculation and titration table functions.
• Built-in rechargeable lithium battery for uninterrupted monitoring.
• Defibrillation-proof design (special leads required).

• ECG: Heart rate (HR), ECG waveform, Arrhythmia and ST-segment analysis.
• RESP: Respiration rate (RR), Respiration waveform.
• SpO2: Pulse oxygen saturation (SpO2), Plethysmogram (PLETH) waveform, Pulse rate (PR).
• NIBP: Systolic (SYS), Diastolic (DIA), Mean pressure (MEAN).
• TEMP: T1, T2, TD.
• Optional: CO2 (EtCO2, INSCO2, AWRR), IBP (CH1, CH2: SYS, DIA, MAP).
